Inheritance diagram for com.piro.bezier.BezierListProducer:

Collaboration diagram for com.piro.bezier.BezierListProducer:

[legend]

Public Member Functions
void	startPath () throws ParseException

void	movetoRel (float x, float y) throws ParseException

void	movetoAbs (float x, float y) throws ParseException

void	closePath () throws ParseException

void	linetoRel (float x, float y) throws ParseException

void	linetoAbs (float x, float y) throws ParseException

void	linetoHorizontalRel (float x) throws ParseException

void	linetoHorizontalAbs (float x) throws ParseException

void	linetoVerticalRel (float y) throws ParseException

void	linetoVerticalAbs (float y) throws ParseException

void	curvetoCubicRel (float x1, float y1, float x2, float y2, float x, float y) throws ParseException

void	curvetoCubicAbs (float x1, float y1, float x2, float y2, float x, float y) throws ParseException

void	curvetoCubicSmoothRel (float x2, float y2, float x, float y) throws ParseException

void	curvetoCubicSmoothAbs (float x2, float y2, float x, float y) throws ParseException

void	curvetoQuadraticRel (float x1, float y1, float x, float y) throws ParseException

void	curvetoQuadraticAbs (float x1, float y1, float x, float y) throws ParseException

void	curvetoQuadraticSmoothRel (float x, float y)

void	curvetoQuadraticSmoothAbs (float x, float y) throws ParseException

void	arcRel (float rx, float ry, float xAxisRotation, boolean largeArcFlag, boolean sweepFlag, float x, float y) throws ParseException

void	arcAbs (float rx, float ry, float xAxisRotation, boolean largeArcFlag, boolean sweepFlag, float x, float y) throws ParseException

void	endPath () throws ParseException

Detailed Description

A handler class that generates an array of shorts and an array floats from parsing path data.

Author: Cameron McCormack

Version

Id: PathArrayProducer.java 475685 2006-11-16 11:16:05Z cam

Definition at line 30 of file BezierListProducer.java.

Member Function Documentation

◆ arcAbs()

void com.piro.bezier.BezierListProducer.arcAbs	(	float	rx,
		float	ry,
		float	xAxisRotation,
		boolean	largeArcFlag,
		boolean	sweepFlag,
		float	x,
		float	y
	)		throws ParseException

Invoked when an absolute elliptical arc command has been parsed.

Command : A

Parameters

rx	the X axis radius for the ellipse
ry	the Y axis radius for the ellipse
xAxisRotation	the rotation angle in degrees for the ellipse's X-axis relative to the X-axis
largeArcFlag	the value of the large-arc-flag
sweepFlag	the value of the sweep-flag
x	the absolute x coordinate for the end point
y	the absolute y coordinate for the end point

Exceptions

ParseException if an error occured while processing the path

Implements com.piro.bezier.PathHandler.

Definition at line 220 of file BezierListProducer.java.

◆ arcRel()

void com.piro.bezier.BezierListProducer.arcRel	(	float	rx,
		float	ry,
		float	xAxisRotation,
		boolean	largeArcFlag,
		boolean	sweepFlag,
		float	x,
		float	y
	)		throws ParseException

Invoked when a relative elliptical arc command has been parsed.

Command : a

Parameters

rx	the X axis radius for the ellipse
ry	the Y axis radius for the ellipse
xAxisRotation	the rotation angle in degrees for the ellipse's X-axis relative to the X-axis
largeArcFlag	the value of the large-arc-flag
sweepFlag	the value of the sweep-flag
x	the relative x coordinate for the end point
y	the relative y coordinate for the end point

Exceptions

ParseException if an error occured while processing the path

Implements com.piro.bezier.PathHandler.

Definition at line 212 of file BezierListProducer.java.

◆ closePath()

void com.piro.bezier.BezierListProducer.closePath ( ) throws ParseException

Invoked when a closepath has been parsed.

Command : z | Z

Exceptions

ParseException if an error occured while processing the path

Implements com.piro.bezier.PathHandler.

Definition at line 57 of file BezierListProducer.java.

Referenced by com.piro.bezier.BezierPath.parsePathList().

◆ curvetoCubicAbs()

void com.piro.bezier.BezierListProducer.curvetoCubicAbs	(	float	x1,
		float	y1,
		float	x2,
		float	y2,
		float	x,
		float	y
	)		throws ParseException

Invoked when an absolute cubic bezier curve command has been parsed.

Command : C

Parameters

x1	the absolute x coordinate for the first control point
y1	the absolute y coordinate for the first control point
x2	the absolute x coordinate for the second control point
y2	the absolute y coordinate for the second control point
x	the absolute x coordinate for the end point
y	the absolute y coordinate for the end point

Exceptions

ParseException if an error occured while processing the path

Implements com.piro.bezier.PathHandler.

Definition at line 117 of file BezierListProducer.java.

References com.piro.bezier.Bezier.getLength(), com.piro.bezier.BezierHistory.setLastKnot(), com.piro.bezier.BezierHistory.setLastPoint(), com.piro.bezier.Vector2.x, and com.piro.bezier.Vector2.y.

Referenced by com.piro.bezier.BezierListProducer.curvetoCubicRel(), and com.piro.bezier.BezierPath.parsePathList().

Here is the call graph for this function:

◆ curvetoCubicRel()

void com.piro.bezier.BezierListProducer.curvetoCubicRel	(	float	x1,
		float	y1,
		float	x2,
		float	y2,
		float	x,
		float	y
	)		throws ParseException

Invoked when a relative cubic bezier curve command has been parsed.

Command : c

Parameters

x1	the relative x coordinate for the first control point
y1	the relative y coordinate for the first control point
x2	the relative x coordinate for the second control point
y2	the relative y coordinate for the second control point
x	the relative x coordinate for the end point
y	the relative y coordinate for the end point

Exceptions

ParseException if an error occured while processing the path

Implements com.piro.bezier.PathHandler.

Definition at line 105 of file BezierListProducer.java.

References com.piro.bezier.BezierListProducer.curvetoCubicAbs(), com.piro.bezier.Vector2.x, and com.piro.bezier.Vector2.y.

Referenced by com.piro.bezier.BezierPath.parsePathList().

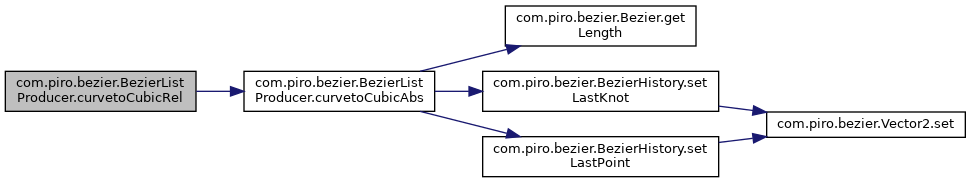

Here is the call graph for this function:

◆ curvetoCubicSmoothAbs()

void com.piro.bezier.BezierListProducer.curvetoCubicSmoothAbs	(	float	x2,
		float	y2,
		float	x,
		float	y
	)		throws ParseException

Invoked when an absolute smooth cubic bezier curve command has been parsed. The first control point is assumed to be the reflection of the second control point on the previous command relative to the current point.

Command : S

Parameters

x2	the absolute x coordinate for the second control point
y2	the absolute y coordinate for the second control point
x	the absolute x coordinate for the end point
y	the absolute y coordinate for the end point

Exceptions

ParseException if an error occured while processing the path

Implements com.piro.bezier.PathHandler.

Definition at line 145 of file BezierListProducer.java.

References com.piro.bezier.Bezier.getLength(), com.piro.bezier.BezierHistory.setLastKnot(), com.piro.bezier.BezierHistory.setLastPoint(), com.piro.bezier.Vector2.x, and com.piro.bezier.Vector2.y.

Referenced by com.piro.bezier.BezierListProducer.curvetoCubicSmoothRel(), and com.piro.bezier.BezierPath.parsePathList().

Here is the call graph for this function:

◆ curvetoCubicSmoothRel()

void com.piro.bezier.BezierListProducer.curvetoCubicSmoothRel	(	float	x2,
		float	y2,
		float	x,
		float	y
	)		throws ParseException

Invoked when a relative smooth cubic bezier curve command has been parsed. The first control point is assumed to be the reflection of the second control point on the previous command relative to the current point.

Command : s

Parameters

x2	the relative x coordinate for the second control point
y2	the relative y coordinate for the second control point
x	the relative x coordinate for the end point
y	the relative y coordinate for the end point

Exceptions

ParseException if an error occured while processing the path

Implements com.piro.bezier.PathHandler.

Definition at line 136 of file BezierListProducer.java.

References com.piro.bezier.BezierListProducer.curvetoCubicSmoothAbs(), com.piro.bezier.Vector2.x, and com.piro.bezier.Vector2.y.

Referenced by com.piro.bezier.BezierPath.parsePathList().

Here is the call graph for this function:

◆ curvetoQuadraticAbs()

void com.piro.bezier.BezierListProducer.curvetoQuadraticAbs	(	float	x1,
		float	y1,
		float	x,
		float	y
	)		throws ParseException

Invoked when an absolute quadratic bezier curve command has been parsed.

Command : Q

Parameters

x1	the absolute x coordinate for the control point
y1	the absolute y coordinate for the control point
x	the absolute x coordinate for the end point
y	the absolute x coordinate for the end point

Exceptions

ParseException if an error occured while processing the path

Implements com.piro.bezier.PathHandler.

Definition at line 180 of file BezierListProducer.java.

References com.piro.bezier.Bezier.getLength(), com.piro.bezier.BezierHistory.setLastKnot(), com.piro.bezier.BezierHistory.setLastPoint(), com.piro.bezier.Vector2.x, and com.piro.bezier.Vector2.y.

Referenced by com.piro.bezier.BezierListProducer.curvetoQuadraticRel(), com.piro.bezier.BezierListProducer.curvetoQuadraticSmoothAbs(), and com.piro.bezier.BezierPath.parsePathList().

Here is the call graph for this function:

◆ curvetoQuadraticRel()

void com.piro.bezier.BezierListProducer.curvetoQuadraticRel	(	float	x1,
		float	y1,
		float	x,
		float	y
	)		throws ParseException

Invoked when a relative quadratic bezier curve command has been parsed.

Command : q

Parameters

x1	the relative x coordinate for the control point
y1	the relative y coordinate for the control point
x	the relative x coordinate for the end point
y	the relative x coordinate for the end point

Exceptions

ParseException if an error occured while processing the path

Implements com.piro.bezier.PathHandler.

Definition at line 171 of file BezierListProducer.java.

References com.piro.bezier.BezierListProducer.curvetoQuadraticAbs(), com.piro.bezier.Vector2.x, and com.piro.bezier.Vector2.y.

Here is the call graph for this function:

◆ curvetoQuadraticSmoothAbs()

void com.piro.bezier.BezierListProducer.curvetoQuadraticSmoothAbs	(	float	x,
		float	y
	)		throws ParseException

Invoked when an absolute smooth quadratic bezier curve command has been parsed. The control point is assumed to be the reflection of the control point on the previous command relative to the current point.

Command : T

Parameters

x	the absolute x coordinate for the end point
y	the absolute y coordinate for the end point

Exceptions

ParseException if an error occured while processing the path

Implements com.piro.bezier.PathHandler.

Definition at line 205 of file BezierListProducer.java.

References com.piro.bezier.BezierListProducer.curvetoQuadraticAbs(), com.piro.bezier.Vector2.x, and com.piro.bezier.Vector2.y.

Referenced by com.piro.bezier.BezierListProducer.curvetoQuadraticSmoothRel(), and com.piro.bezier.BezierPath.parsePathList().

Here is the call graph for this function:

◆ curvetoQuadraticSmoothRel()

void com.piro.bezier.BezierListProducer.curvetoQuadraticSmoothRel	(	float	x,
		float	y
	)

Invoked when a relative smooth quadratic bezier curve command has been parsed. The control point is assumed to be the reflection of the control point on the previous command relative to the current point.

Command : t

Parameters

x	the relative x coordinate for the end point
y	the relative y coordinate for the end point

Exceptions

ParseException if an error occured while processing the path

Implements com.piro.bezier.PathHandler.

Definition at line 197 of file BezierListProducer.java.

References com.piro.bezier.BezierListProducer.curvetoQuadraticSmoothAbs(), com.piro.bezier.Vector2.x, and com.piro.bezier.Vector2.y.

Referenced by com.piro.bezier.BezierPath.parsePathList().

Here is the call graph for this function:

◆ endPath()

void com.piro.bezier.BezierListProducer.endPath ( ) throws ParseException

Invoked when the path ends.

Exceptions

ParseException if an error occured while processing the path

Implements com.piro.bezier.PathHandler.

Definition at line 228 of file BezierListProducer.java.

References com.piro.bezier.BezierHistory.setLastKnot(), com.piro.bezier.BezierHistory.setLastPoint(), com.piro.bezier.Vector2.x, and com.piro.bezier.Vector2.y.

Here is the call graph for this function:

◆ linetoAbs()

void com.piro.bezier.BezierListProducer.linetoAbs	(	float	x,
		float	y
	)		throws ParseException

Invoked when an absolute line command has been parsed.

Command : L

Parameters

x	the absolute x coordinate for the end point
y	the absolute y coordinate for the end point

Exceptions

ParseException if an error occured while processing the path

Implements com.piro.bezier.PathHandler.

Definition at line 70 of file BezierListProducer.java.

References com.piro.bezier.Bezier.getLength(), com.piro.bezier.BezierHistory.setLastKnot(), com.piro.bezier.BezierHistory.setLastPoint(), com.piro.bezier.Vector2.x, and com.piro.bezier.Vector2.y.

Referenced by com.piro.bezier.BezierListProducer.linetoHorizontalAbs(), com.piro.bezier.BezierListProducer.linetoHorizontalRel(), com.piro.bezier.BezierListProducer.linetoRel(), com.piro.bezier.BezierListProducer.linetoVerticalAbs(), com.piro.bezier.BezierListProducer.linetoVerticalRel(), and com.piro.bezier.BezierPath.parsePathList().

Here is the call graph for this function:

◆ linetoHorizontalAbs()

void com.piro.bezier.BezierListProducer.linetoHorizontalAbs ( float x ) throws ParseException

Invoked when an horizontal absolute line command has been parsed.

Command : H

Parameters

x	the absolute X coordinate of the end point

Exceptions

ParseException if an error occured while processing the path

Implements com.piro.bezier.PathHandler.

Definition at line 90 of file BezierListProducer.java.

References com.piro.bezier.BezierListProducer.linetoAbs(), and com.piro.bezier.Vector2.y.

Referenced by com.piro.bezier.BezierPath.parsePathList().

Here is the call graph for this function:

◆ linetoHorizontalRel()

void com.piro.bezier.BezierListProducer.linetoHorizontalRel ( float x ) throws ParseException

Invoked when an horizontal relative line command has been parsed.

Command : h

Parameters

x	the relative X coordinate of the end point

Exceptions

ParseException if an error occured while processing the path

Implements com.piro.bezier.PathHandler.

Definition at line 85 of file BezierListProducer.java.

References com.piro.bezier.BezierListProducer.linetoAbs(), com.piro.bezier.Vector2.x, and com.piro.bezier.Vector2.y.

Referenced by com.piro.bezier.BezierPath.parsePathList().

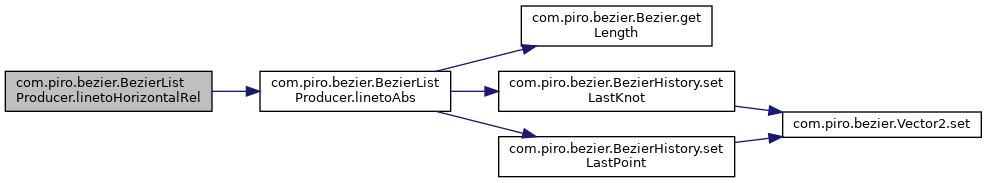

Here is the call graph for this function:

◆ linetoRel()

void com.piro.bezier.BezierListProducer.linetoRel	(	float	x,
		float	y
	)		throws ParseException

Invoked when a relative line command has been parsed.

Command : l

Parameters

x	the relative x coordinates for the end point
y	the relative y coordinates for the end point

Exceptions

ParseException if an error occured while processing the path

Implements com.piro.bezier.PathHandler.

Definition at line 62 of file BezierListProducer.java.

References com.piro.bezier.BezierListProducer.linetoAbs(), com.piro.bezier.Vector2.x, and com.piro.bezier.Vector2.y.

Referenced by com.piro.bezier.BezierPath.parsePathList().

Here is the call graph for this function:

◆ linetoVerticalAbs()

void com.piro.bezier.BezierListProducer.linetoVerticalAbs ( float y ) throws ParseException

Invoked when a vertical absolute line command has been parsed.

Command : V

Parameters

y	the absolute Y coordinate of the end point

Exceptions

ParseException if an error occured while processing the path

Implements com.piro.bezier.PathHandler.

Definition at line 100 of file BezierListProducer.java.

References com.piro.bezier.BezierListProducer.linetoAbs(), and com.piro.bezier.Vector2.x.

Referenced by com.piro.bezier.BezierPath.parsePathList().

Here is the call graph for this function:

◆ linetoVerticalRel()

void com.piro.bezier.BezierListProducer.linetoVerticalRel ( float y ) throws ParseException

Invoked when a vertical relative line command has been parsed.

Command : v

Parameters

y	the relative Y coordinate of the end point

Exceptions

ParseException if an error occured while processing the path

Implements com.piro.bezier.PathHandler.

Definition at line 95 of file BezierListProducer.java.

References com.piro.bezier.BezierListProducer.linetoAbs(), com.piro.bezier.Vector2.x, and com.piro.bezier.Vector2.y.

Here is the call graph for this function:

◆ movetoAbs()

void com.piro.bezier.BezierListProducer.movetoAbs	(	float	x,
		float	y
	)		throws ParseException

Invoked when an absolute moveto command has been parsed.

Command : M

Parameters

x	the absolute x coordinate for the end point
y	the absolute y coordinate for the end point

Exceptions

ParseException if an error occured while processing the path

Implements com.piro.bezier.PathHandler.

Definition at line 52 of file BezierListProducer.java.

References com.piro.bezier.BezierHistory.setLastPoint().

Referenced by com.piro.bezier.BezierListProducer.movetoRel(), and com.piro.bezier.BezierPath.parsePathList().

Here is the call graph for this function:

◆ movetoRel()

void com.piro.bezier.BezierListProducer.movetoRel	(	float	x,
		float	y
	)		throws ParseException

Invoked when a relative moveto command has been parsed.

Command : m

Parameters

x	the relative x coordinate for the end point
y	the relative y coordinate for the end point

Exceptions

ParseException if an error occured while processing the path

Implements com.piro.bezier.PathHandler.

Definition at line 44 of file BezierListProducer.java.

References com.piro.bezier.BezierListProducer.movetoAbs(), com.piro.bezier.Vector2.x, and com.piro.bezier.Vector2.y.

Referenced by com.piro.bezier.BezierPath.parsePathList().

Here is the call graph for this function:

◆ startPath()

void com.piro.bezier.BezierListProducer.startPath ( ) throws ParseException

Invoked when the path starts.

Exceptions

ParseException if an error occured while processing the path

Implements com.piro.bezier.PathHandler.

Definition at line 38 of file BezierListProducer.java.

The documentation for this class was generated from the following file:

src/main/java/com/piro/bezier/BezierListProducer.java

Public Member Functions

Detailed Description

Member Function Documentation

◆ arcAbs()

◆ arcRel()

◆ closePath()

◆ curvetoCubicAbs()

◆ curvetoCubicRel()

◆ curvetoCubicSmoothAbs()

◆ curvetoCubicSmoothRel()

◆ curvetoQuadraticAbs()

◆ curvetoQuadraticRel()

◆ curvetoQuadraticSmoothAbs()

◆ curvetoQuadraticSmoothRel()

◆ endPath()

◆ linetoAbs()

◆ linetoHorizontalAbs()

◆ linetoHorizontalRel()

◆ linetoRel()

◆ linetoVerticalAbs()

◆ linetoVerticalRel()

◆ movetoAbs()

◆ movetoRel()

◆ startPath()
