eu.mihosoft.vrl.v3d.Cylinder Class Reference

Inheritance diagram for eu.mihosoft.vrl.v3d.Cylinder:

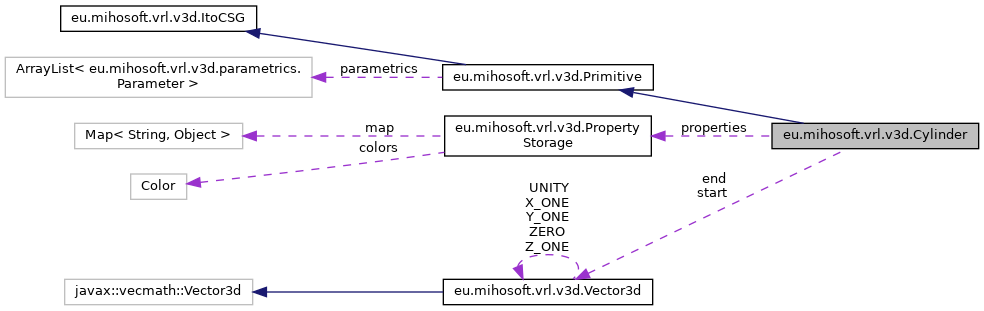

Collaboration diagram for eu.mihosoft.vrl.v3d.Cylinder:

Public Member Functions
	Cylinder ()
	Cylinder (Vector3d start, Vector3d end, double radius, int numSlices)
	Cylinder (Vector3d start, Vector3d end, double startRadius, double endRadius, int numSlices)
	Cylinder (double radius, double height, int numSlices)
	Cylinder (double startRadius, double endRadius, double height, int numSlices)
	Cylinder (double radius, double height)
	Cylinder (double startRadius, double endRadius, double height)
	Cylinder (LengthParameter startRadius, LengthParameter endRadius, LengthParameter height, int numSlices)
	Cylinder (LengthParameter startRadius, LengthParameter height, int numSlices)
	Cylinder (LengthParameter startRadius, LengthParameter endRadius, LengthParameter height)
	Cylinder (LengthParameter startRadius, LengthParameter height)
List< Polygon >	toPolygons ()
Vector3d	getStart ()
void	setStart (Vector3d start)
Vector3d	getEnd ()
void	setEnd (Vector3d end)
double	getStartRadius ()
void	setStartRadius (double radius)
double	getEndRadius ()
void	setEndRadius (double radius)
int	getNumSlices ()
void	setNumSlices (int numSlices)
PropertyStorage	getProperties ()
Public Member Functions inherited from eu.mihosoft.vrl.v3d.Primitive
CSG	toCSG ()

Private Member Functions
Vertex	cylPoint (Vector3d axisX, Vector3d axisY, Vector3d axisZ, Vector3d ray, Vector3d s, double r, double stack, double slice, double normalBlend)

Private Attributes
Vector3d	start
Vector3d	end
double	startRadius
double	endRadius
int	numSlices =defaultNumSlices
final PropertyStorage	properties = new PropertyStorage()

Static Private Attributes
static final double	MINIMUM_RADIUS =0.001
static int	defaultNumSlices =16

Detailed Description

A solid cylinder.

The tessellation can be controlled via the numSlices parameter.

Author

Michael Hoffer <info@.nosp@m.mich.nosp@m.aelho.nosp@m.ffer.nosp@m..de>

Definition at line 51 of file Cylinder.java.

Constructor & Destructor Documentation

Cylinder() [1/11]

eu.mihosoft.vrl.v3d.Cylinder.Cylinder

(

)

Constructor. Creates a new cylinder with center

[0,0,0]

and ranging from

[0,-0.5,0]

to

[0,0.5,0]

, i.e.

size = 1

.

Definition at line 76 of file Cylinder.java.

References eu.mihosoft.vrl.v3d.Cylinder.defaultNumSlices.

Cylinder() [2/11]

eu.mihosoft.vrl.v3d.Cylinder.Cylinder	(	Vector3d	start,
		Vector3d	end,
		double	radius,
		int	numSlices
	)

Constructor. Creates a cylinder ranging from

start

to

end

with the specified

radius

. The resolution of the tessellation can be controlled with

numSlices

.

Parameters

start	cylinder start
end	cylinder end
radius	cylinder radius
numSlices	number of slices (used for tessellation)

Definition at line 94 of file Cylinder.java.

References eu.mihosoft.vrl.v3d.Cylinder.end, eu.mihosoft.vrl.v3d.Cylinder.MINIMUM_RADIUS, eu.mihosoft.vrl.v3d.Cylinder.numSlices, and eu.mihosoft.vrl.v3d.Cylinder.start.

Cylinder() [3/11]

eu.mihosoft.vrl.v3d.Cylinder.Cylinder	(	Vector3d	start,
		Vector3d	end,
		double	startRadius,
		double	endRadius,
		int	numSlices
	)

Constructor. Creates a cylinder ranging from

start

to

end

with the specified

radius

. The resolution of the tessellation can be controlled with

numSlices

.

Parameters

start	cylinder start
end	cylinder end
startRadius	cylinder start radius
endRadius	cylinder end radius
numSlices	number of slices (used for tessellation)

Definition at line 113 of file Cylinder.java.

References eu.mihosoft.vrl.v3d.Cylinder.end, eu.mihosoft.vrl.v3d.Cylinder.endRadius, eu.mihosoft.vrl.v3d.Cylinder.MINIMUM_RADIUS, eu.mihosoft.vrl.v3d.Cylinder.numSlices, eu.mihosoft.vrl.v3d.Cylinder.start, and eu.mihosoft.vrl.v3d.Cylinder.startRadius.

Cylinder() [4/11]

eu.mihosoft.vrl.v3d.Cylinder.Cylinder	(	double	radius,
		double	height,
		int	numSlices
	)

Constructor. Creates a cylinder ranging from

[0,0,0]

to

[0,0,height]

with the specified

radius

and

height

. The resolution of the tessellation can be controlled with

numSlices

.

Parameters

radius	cylinder radius
height	cylinder height
numSlices	number of slices (used for tessellation)

Definition at line 131 of file Cylinder.java.

References eu.mihosoft.vrl.v3d.Cylinder.MINIMUM_RADIUS, eu.mihosoft.vrl.v3d.Cylinder.numSlices, eu.mihosoft.vrl.v3d.Vector3d.times(), eu.mihosoft.vrl.v3d.Vector3d.Z_ONE, and eu.mihosoft.vrl.v3d.Vector3d.ZERO.

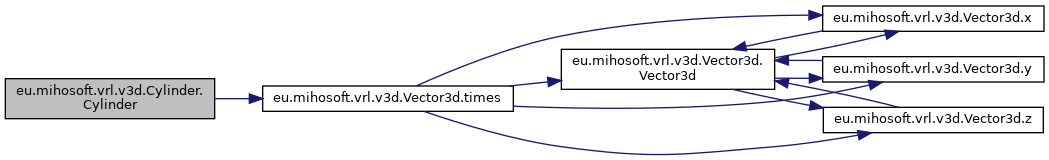

Here is the call graph for this function:

Cylinder() [5/11]

eu.mihosoft.vrl.v3d.Cylinder.Cylinder	(	double	startRadius,
		double	endRadius,
		double	height,
		int	numSlices
	)

Constructor. Creates a cylinder ranging from

[0,0,0]

to

[0,0,height]

with the specified

radius

and

height

. The resolution of the tessellation can be controlled with

numSlices

.

Parameters

startRadius	cylinder start radius
endRadius	cylinder end radius
height	cylinder height
numSlices	number of slices (used for tessellation)

Definition at line 150 of file Cylinder.java.

References eu.mihosoft.vrl.v3d.Cylinder.endRadius, eu.mihosoft.vrl.v3d.Cylinder.MINIMUM_RADIUS, eu.mihosoft.vrl.v3d.Cylinder.numSlices, eu.mihosoft.vrl.v3d.Cylinder.startRadius, eu.mihosoft.vrl.v3d.Vector3d.times(), eu.mihosoft.vrl.v3d.Vector3d.Z_ONE, and eu.mihosoft.vrl.v3d.Vector3d.ZERO.

Here is the call graph for this function:

Cylinder() [6/11]

eu.mihosoft.vrl.v3d.Cylinder.Cylinder	(	double	radius,
		double	height
	)

Constructor. Creates a cylinder ranging from

[0,0,0]

to

[0,0,height]

with the specified

radius

and

height

. The resolution of the tessellation can be controlled with

numSlices

.

Parameters

radius	cylinder radius
height	cylinder height

Definition at line 166 of file Cylinder.java.

References eu.mihosoft.vrl.v3d.Cylinder.MINIMUM_RADIUS, eu.mihosoft.vrl.v3d.Vector3d.times(), eu.mihosoft.vrl.v3d.Vector3d.Z_ONE, and eu.mihosoft.vrl.v3d.Vector3d.ZERO.

Here is the call graph for this function:

Cylinder() [7/11]

eu.mihosoft.vrl.v3d.Cylinder.Cylinder	(	double	startRadius,
		double	endRadius,
		double	height
	)

Constructor. Creates a cylinder ranging from

[0,0,0]

to

[0,0,height]

with the specified

radius

and

height

. The resolution of the tessellation can be controlled with

numSlices

.

Parameters

startRadius	cylinder start radius
endRadius	cylinder end radius
height	cylinder height

Definition at line 183 of file Cylinder.java.

References eu.mihosoft.vrl.v3d.Cylinder.endRadius, eu.mihosoft.vrl.v3d.Cylinder.MINIMUM_RADIUS, eu.mihosoft.vrl.v3d.Cylinder.startRadius, eu.mihosoft.vrl.v3d.Vector3d.times(), eu.mihosoft.vrl.v3d.Vector3d.Z_ONE, and eu.mihosoft.vrl.v3d.Vector3d.ZERO.

Here is the call graph for this function:

Cylinder() [8/11]

eu.mihosoft.vrl.v3d.Cylinder.Cylinder	(	LengthParameter	startRadius,
		LengthParameter	endRadius,
		LengthParameter	height,
		int	numSlices
	)

Definition at line 189 of file Cylinder.java.

References eu.mihosoft.vrl.v3d.Cylinder.endRadius, eu.mihosoft.vrl.v3d.parametrics.Parameter.getMM(), eu.mihosoft.vrl.v3d.Cylinder.numSlices, and eu.mihosoft.vrl.v3d.Cylinder.startRadius.

Here is the call graph for this function:

Cylinder() [9/11]

eu.mihosoft.vrl.v3d.Cylinder.Cylinder	(	LengthParameter	startRadius,
		LengthParameter	height,
		int	numSlices
	)

Definition at line 195 of file Cylinder.java.

References eu.mihosoft.vrl.v3d.Cylinder.numSlices, and eu.mihosoft.vrl.v3d.Cylinder.startRadius.

Cylinder() [10/11]

eu.mihosoft.vrl.v3d.Cylinder.Cylinder	(	LengthParameter	startRadius,
		LengthParameter	endRadius,
		LengthParameter	height
	)

Definition at line 198 of file Cylinder.java.

References eu.mihosoft.vrl.v3d.Cylinder.endRadius, eu.mihosoft.vrl.v3d.parametrics.Parameter.getMM(), and eu.mihosoft.vrl.v3d.Cylinder.startRadius.

Here is the call graph for this function:

Cylinder() [11/11]

eu.mihosoft.vrl.v3d.Cylinder.Cylinder	(	LengthParameter	startRadius,
		LengthParameter	height
	)

Definition at line 204 of file Cylinder.java.

References eu.mihosoft.vrl.v3d.Cylinder.startRadius.

Member Function Documentation

cylPoint()

Vertex eu.mihosoft.vrl.v3d.Cylinder.cylPoint ( Vector3d  axisX, Vector3d  axisY, Vector3d  axisZ, Vector3d  ray, Vector3d  s, double  r, double  stack, double  slice, double  normalBlend  )

private

Cyl point.

Parameters

axisX	the axis x
axisY	the axis y
axisZ	the axis z
ray	the ray
s	the s
r	the r
stack	the stack
slice	the slice
normalBlend	the normal blend

Returns

the vertex

Definition at line 275 of file Cylinder.java.

References eu.mihosoft.vrl.v3d.Vector3d.plus(), and eu.mihosoft.vrl.v3d.Vector3d.times().

Referenced by eu.mihosoft.vrl.v3d.Cylinder.toPolygons().

Here is the call graph for this function:

getEnd()

Vector3d eu.mihosoft.vrl.v3d.Cylinder.getEnd

(

)

Gets the end.

Returns

the end

Definition at line 308 of file Cylinder.java.

References eu.mihosoft.vrl.v3d.Cylinder.end.

Referenced by eu.mihosoft.vrl.v3d.Cylinder.toPolygons().

getEndRadius()

double eu.mihosoft.vrl.v3d.Cylinder.getEndRadius

(

)

Gets the end radius.

Returns

the radius

Definition at line 344 of file Cylinder.java.

References eu.mihosoft.vrl.v3d.Cylinder.endRadius.

getNumSlices()

int eu.mihosoft.vrl.v3d.Cylinder.getNumSlices

(

)

Gets the num slices.

Returns

the number of slices

Definition at line 362 of file Cylinder.java.

References eu.mihosoft.vrl.v3d.Cylinder.numSlices.

getProperties()

PropertyStorage eu.mihosoft.vrl.v3d.Cylinder.getProperties

(

)

Returns the property storage of this primitive.

Returns

the property storage of this primitive

Reimplemented from eu.mihosoft.vrl.v3d.Primitive.

Definition at line 379 of file Cylinder.java.

References eu.mihosoft.vrl.v3d.Cylinder.properties.

getStart()

Vector3d eu.mihosoft.vrl.v3d.Cylinder.getStart

(

)

Gets the start.

Returns

the start

Definition at line 290 of file Cylinder.java.

References eu.mihosoft.vrl.v3d.Cylinder.start.

Referenced by eu.mihosoft.vrl.v3d.Cylinder.toPolygons().

getStartRadius()

double eu.mihosoft.vrl.v3d.Cylinder.getStartRadius

(

)

Gets the start radius.

Returns

the radius

Definition at line 326 of file Cylinder.java.

References eu.mihosoft.vrl.v3d.Cylinder.startRadius.

setEnd()

void eu.mihosoft.vrl.v3d.Cylinder.setEnd

(

Vector3d

end

)

Sets the end.

Parameters

end	the end to set

Definition at line 317 of file Cylinder.java.

References eu.mihosoft.vrl.v3d.Cylinder.end.

setEndRadius()

void eu.mihosoft.vrl.v3d.Cylinder.setEndRadius

(

double

radius

)

Sets the end radius.

Parameters

radius

the radius to set

Definition at line 353 of file Cylinder.java.

setNumSlices()

void eu.mihosoft.vrl.v3d.Cylinder.setNumSlices

(

int

numSlices

)

Sets the num slices.

Parameters

numSlices

the number of slices to set

Definition at line 371 of file Cylinder.java.

References eu.mihosoft.vrl.v3d.Cylinder.numSlices.

setStart()

void eu.mihosoft.vrl.v3d.Cylinder.setStart

(

Vector3d

start

)

Sets the start.

Parameters

start

the start to set

Definition at line 299 of file Cylinder.java.

References eu.mihosoft.vrl.v3d.Cylinder.start.

setStartRadius()

void eu.mihosoft.vrl.v3d.Cylinder.setStartRadius

(

double

radius

)

Sets the start radius.

Parameters

radius

the radius to set

Definition at line 335 of file Cylinder.java.

toPolygons()

List<Polygon> eu.mihosoft.vrl.v3d.Cylinder.toPolygons

(

)

Returns the polygons that define this primitive.

Note: this method computes the polygons each time this method is called. The polygons can be cached inside a CSG object.

Returns

a list of polygons that define this primitive

Reimplemented from eu.mihosoft.vrl.v3d.Primitive.

Definition at line 211 of file Cylinder.java.

References eu.mihosoft.vrl.v3d.Vector3d.cross(), eu.mihosoft.vrl.v3d.Cylinder.cylPoint(), eu.mihosoft.vrl.v3d.Cylinder.endRadius, eu.mihosoft.vrl.v3d.Cylinder.getEnd(), eu.mihosoft.vrl.v3d.Cylinder.getStart(), eu.mihosoft.vrl.v3d.Vector3d.minus(), eu.mihosoft.vrl.v3d.Vector3d.negated(), eu.mihosoft.vrl.v3d.Vector3d.normalized(), eu.mihosoft.vrl.v3d.Cylinder.numSlices, eu.mihosoft.vrl.v3d.Cylinder.properties, eu.mihosoft.vrl.v3d.Cylinder.startRadius, eu.mihosoft.vrl.v3d.Vector3d.y(), and eu.mihosoft.vrl.v3d.Vector3d.z().

Here is the call graph for this function:

Member Data Documentation

defaultNumSlices

int eu.mihosoft.vrl.v3d.Cylinder.defaultNumSlices =16

staticprivate

Definition at line 63 of file Cylinder.java.

Referenced by eu.mihosoft.vrl.v3d.Cylinder.Cylinder().

end

Vector3d eu.mihosoft.vrl.v3d.Cylinder.end

private

The end.

Definition at line 56 of file Cylinder.java.

Referenced by eu.mihosoft.vrl.v3d.Cylinder.Cylinder(), eu.mihosoft.vrl.v3d.Cylinder.getEnd(), and eu.mihosoft.vrl.v3d.Cylinder.setEnd().

endRadius

double eu.mihosoft.vrl.v3d.Cylinder.endRadius

private

The end radius.

Definition at line 62 of file Cylinder.java.

Referenced by eu.mihosoft.vrl.v3d.Cylinder.Cylinder(), eu.mihosoft.vrl.v3d.Cylinder.getEndRadius(), and eu.mihosoft.vrl.v3d.Cylinder.toPolygons().

MINIMUM_RADIUS

final double eu.mihosoft.vrl.v3d.Cylinder.MINIMUM_RADIUS =0.001

staticprivate

Definition at line 52 of file Cylinder.java.

Referenced by eu.mihosoft.vrl.v3d.Cylinder.Cylinder().

numSlices

int eu.mihosoft.vrl.v3d.Cylinder.numSlices =defaultNumSlices

private

The num slices.

Definition at line 66 of file Cylinder.java.

Referenced by eu.mihosoft.vrl.v3d.Cylinder.Cylinder(), eu.mihosoft.vrl.v3d.Cylinder.getNumSlices(), eu.mihosoft.vrl.v3d.Cylinder.setNumSlices(), and eu.mihosoft.vrl.v3d.Cylinder.toPolygons().

properties

final PropertyStorage eu.mihosoft.vrl.v3d.Cylinder.properties = new PropertyStorage()

private

The properties.

Definition at line 69 of file Cylinder.java.

Referenced by eu.mihosoft.vrl.v3d.Cylinder.getProperties(), and eu.mihosoft.vrl.v3d.Cylinder.toPolygons().

start

Vector3d eu.mihosoft.vrl.v3d.Cylinder.start

private

Definition at line 53 of file Cylinder.java.

Referenced by eu.mihosoft.vrl.v3d.Cylinder.Cylinder(), eu.mihosoft.vrl.v3d.Cylinder.getStart(), and eu.mihosoft.vrl.v3d.Cylinder.setStart().

startRadius

double eu.mihosoft.vrl.v3d.Cylinder.startRadius

private

The start radius.

Definition at line 59 of file Cylinder.java.

Referenced by eu.mihosoft.vrl.v3d.Cylinder.Cylinder(), eu.mihosoft.vrl.v3d.Cylinder.getStartRadius(), and eu.mihosoft.vrl.v3d.Cylinder.toPolygons().

---

The documentation for this class was generated from the following file:

• src/main/java/eu/mihosoft/vrl/v3d/Cylinder.java
